If your website it not using the Bootstrap framework for responsive grids, carousels, etc., consider using the alternative lightweight navigation menus.

The bootnav model is used to define menus to be rendered using the bootstrap framework. Menus (also called Navigation Bars) generated using this model are responsive by default. Most small to medium size sites will only define one menu and will use the default specification name which is bootnav. Larger sites can define separate menus to serve as sub-menus.

Adding the navbar to your layout

Menus defined using the bootnav model are rendered using the $bootnav function. This is generally placed within your site's layout or within a layout container populated within the site_settings of your site.

Defining Page Links

Refer to the menu definition shown in the screen shot to the right. As you can see, menus are defined in a cascading pattern whereby "main" menu items are defined under the column labelled Level 1. First level sub-menus are defined under Level 2, etc.

Items that are entered in lower case are normally page identifiers and there should be a matching page defined. As indicated by the blue border around the fields, you can double-click in a field to obtain a list of page ids from which to select. Occasionally, you may want to link to other sites or documents such as PDFs in the current site. To to so, you must use the anchor model to define the link to the target site or document. You can see in the example to the right that the Shop link has been specified using an anchor dollar function. In this example, this anchor will be used to take the user to an Amazon store.

Sample anchor definition

Defining List Headings

Items that begin with an upper case character are considered to be text items used to introduce a sub-menu. For all such items there should be a sub-menu starting on the cell that is one row lower and one column to the right of the list heading.

Page Anchor Text

By default, anchor text for the page links is taken from the short link text of the respective page definition. Similarly, links defined using $anchor will be taken from the anchor definition.

Overriding Anchor Text

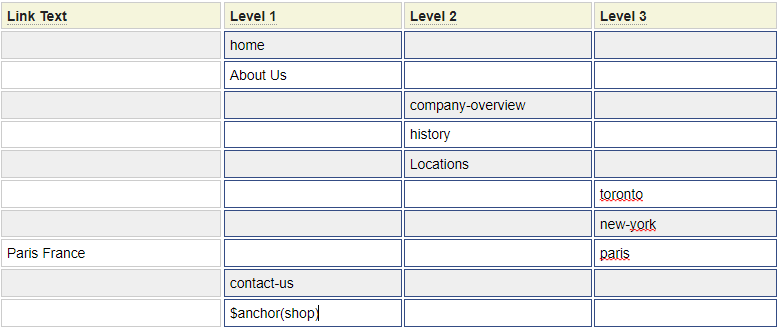

Column 1 of the menu specification can be used to override the anchor text to be used for a page link in cases where you do not want to change the short link text associated with the page. Here we see that the anchor text for the "paris" page has been overridden to "Paris France".

Column 1 can be used to override the link text

Sitemap Only Option

In addition to their use in site navigation, menu definitions can also be used to generate sitemap pages. There may be cases where you do not want a page to appear on the menu but you do want the page to appear on the sitemap. In such cases, check the sitemap column next to the page.


The Disabled column allows you to add items to your menu that are not yet available for selection.

Multilingual Support

Menus can be made to support multilingual websites. To do so you must utilize the translation model to define and translate the text to be used. A special internationalization escape character can be defined on your site_settings profile. This defaults to a colon (:).

Translation Page Link Text

Recall that the short link text associated with the page is used as the text on the menu. If this text begins with the internationalization escape character, the link text is treated as a pointer to a translation class using the following rules.

  1. If the short link text contains only the internationalization escape character, the translation class is assumed to be page and the translation variable is assumed to be the name of the page.
  2. If the short link text is in the pattern class->variable, the class name (before the ->) will be used as the translation class and the variable (after ->) will be used as the translation variable.
  3. Otherwise the translation class is assumed to be the contents of the short link text (after the escape character) and the translation variable is the name of the pageid.

When translating pages defined using $anchor, the translation class can be defined as a property of the anchor. If you such property is found, the class is assumed to be anchor.

Translating List Headings

List headings that begin with the internationalization escape character will be treated as pointers to translation classes. These can either be fully qualified as in :class->variable or they can just contain the variable name as in :variable. If they only contain the variable name the translation class is assumed to be the same as the menu id.

Adding Bootstrap Styles and Script

Bootstrap needs a number of style and script files to be defined in order to use the built-in Bootstrap features. Since most of the pages of your site have a menu, the GenHelm framework automatically adds the necessary styles and script if it detects that these have not been added manually. Specifically, the bootstrap package will be added to pages that include a reference to the $bootnav function.

The bootstrap styles and scripts are served from a CDN (Content Delivery Network). It is also possible to host one or more of these files on your own site. You would need to do this if you plan to make changes to the default files. If hosting these files on your site, you must update the bootstrap package and change the references to point to your local script and css files.

Styling Your Navbar

Before styling your navbar it is a good idea to become familiar with Bootstrap 5 Navbar. The bootnav model seeks to implement all of the features offered by the Bootstrap navbar. The easiest way to learn about these features is to try them and look at the rendered output. Refer to the popup help for each of the bootnav specification fields to learn how the fields are used.

Specification Used by the bootnav Model
Sample rendered bootstrap navbar rendering
